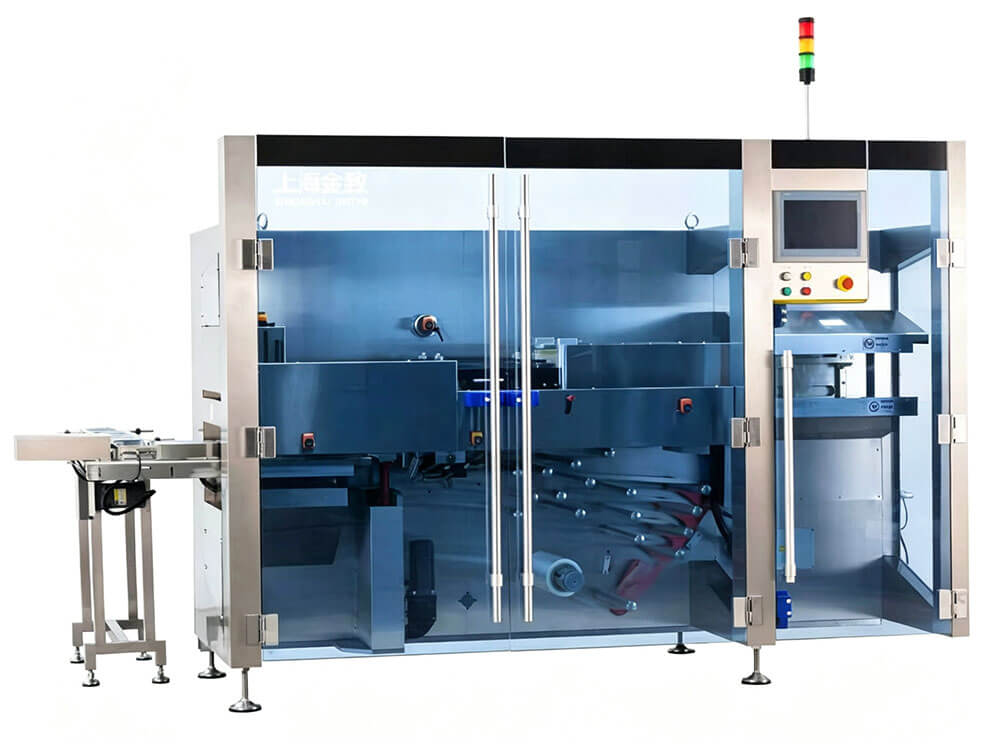

The High Speed Overwrapping Machine suitable for connecting to a high-speed cartoning machine, the speed can reach 60pcs/min.

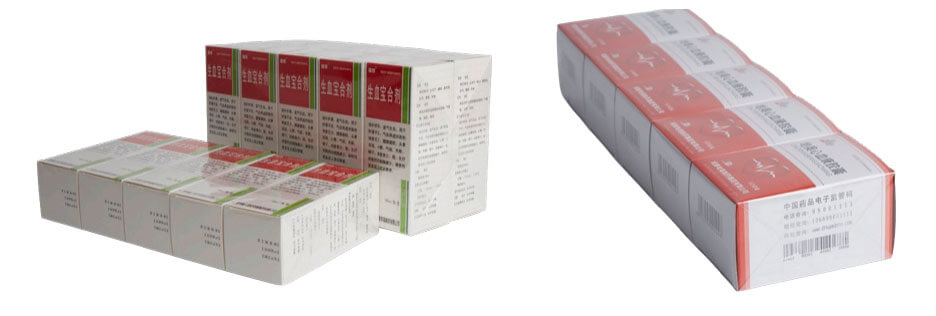

Wrapping Process

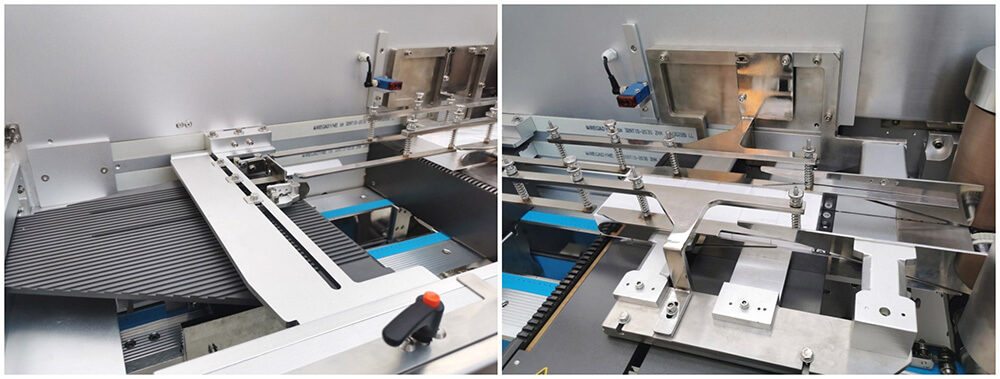

Feeding Conveyor Belt

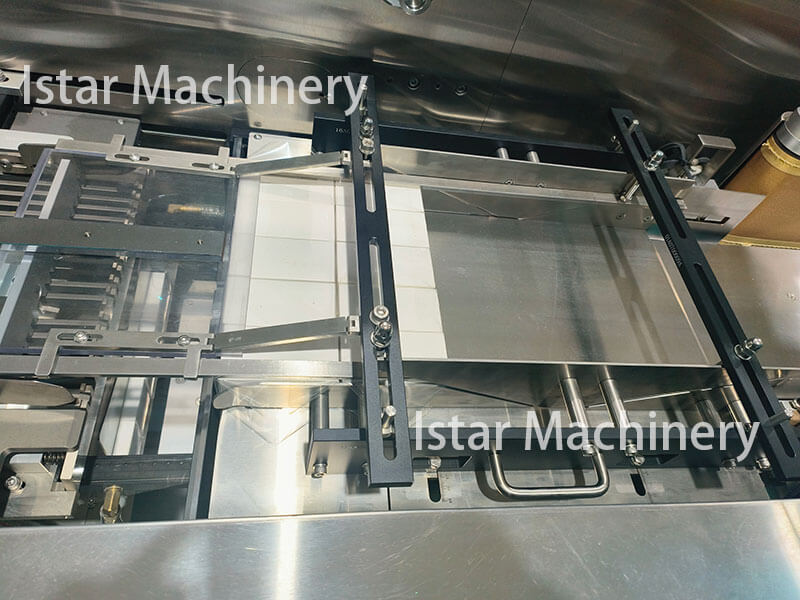

Film Folding

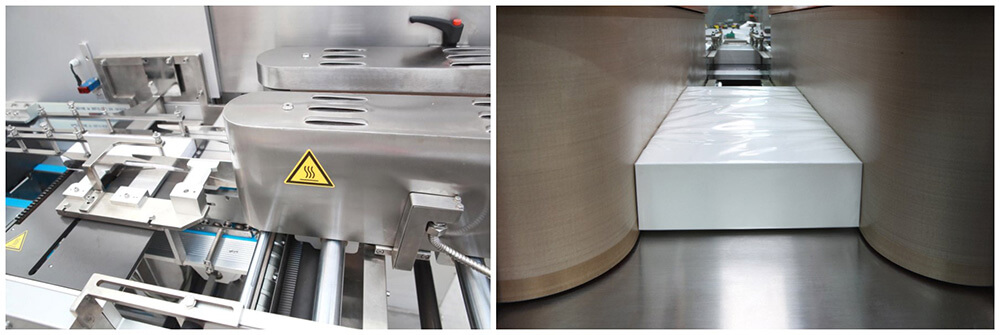

High Speed Overwrapping Machine Heating output
Features
- Using motion control system, a total of 6 servo motors drive.
- Adopt vacuum suction packing film to eliminate static electricity.
- Adjust the box size by servo motor.
- The continuous heat-sealing structure design is adopted to make the heat-sealing on both sides of the product even and flat.
- The film roll is equipped with the alarm, and it will automatically stop when it runs out.
- The box sensor is used to detect whether the box is in place.
- The box height detection sensor detects whether the stack height of the cartons is correct.
- Equipped with the safety door, once the door is opened, the machine will automatically stop.
Specifications
| Model | DTS-300 | DTS-400 |
|---|---|---|
| Speed | 20-60boxes/min | 20-60boxes/min |
| Packing Size | L(30-300)×W(60-250)×H(15-150)mm | L(30-350)×W(60-300)×H(15-150)mm |
| Packing Material | BOPP Film | BOPP Film |
| Voltage Supply | 380V 50/60HZ | 380V 50/60HZ |
| Power Supply | 10KW | 10KW |
| Working Pressure | ≥0.6mpa 20m3/h | ≥0.6mpa 20m3/h |
| Overall Dimension | L3325XW1550XH1700mm | L3325XW1550XH1700mm |
| Machine Weight | 1450kg | 1600kg |
