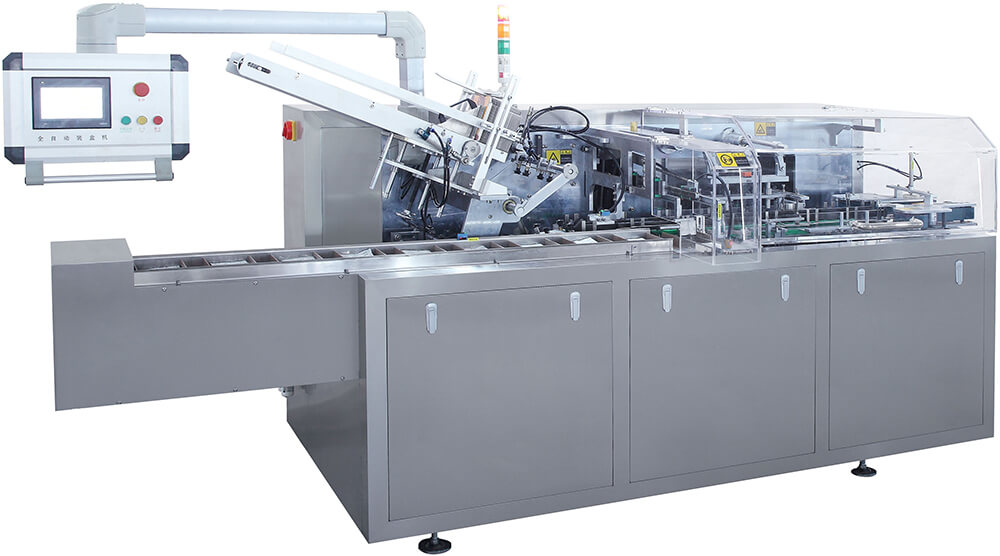

Automatic Cartoning Machine DXH-190

Automatic Cartoning Machine DXH-190 Suitable for boxing and sealing of oral liquids, custard pie, cookies and other large-size products.
Automatic Cartoning Machine DXH-190 Touch Screen

Touch Screen

Automatic Cartoning Machine DXH-190 Carton Feeder

Carton Feeder

Automatic Cartoning Machine DXH-190 Suction box

Suction box

Automatic Cartoning Machine DXH-190 Pusher

Pusher

Automatic Cartoning Machine DXH-190 Sealing

Sealing

Automatic Cartoning Machine DXH-190 Output

Output

Features

  • Packing forms such as automatic feeding, box opening, boxing, batch No. printing, box sealing, waste rejecting, etc. are adopted. Featured by compact and reasonable structure, simple operation and adjustment.
  • Servo/step motor, touch screen, PLC control system and man-machine interface display make operation more clear and convenient. With high automation degree, the machine is more user-friendly.
  • The photoelectric eye automatic detection tracking system is adopted. No boxing is made if the bag is empty, so as to save packing materials to the utmost extent.
  • Automatic stopping is available when the material boxing is not in place, and the main driving motor overload protection device is used, so that the machine is safer and more reliable.

Specifications

Model DXH-120 DXH-190
Speed 30-80Boxes/Min 30-60Boxes/Min
Box Size L(70-250)XW(60-120)XH(20-90)mm L(70-280)XW(80-180)XH(20-90)mm
Box Quality requirement 250-400g/m2 250-400g/m2
Working Pressure ≥0.6mpa 20m3/h ≥0.6mpa 20m3/h
Power 380V 50Hz 1.5KW 380V 50Hz 1.5KW
Overall Dimension L4600×W1350×H1900mm L4600×W1350×H1900mm
Machine Weight 1500KG 1800KG
